Note
This post is part of a new series of short-form posts titled Today I learned. These posts are intended to be short and more informal—my goal is for you to learn one thing quickly.

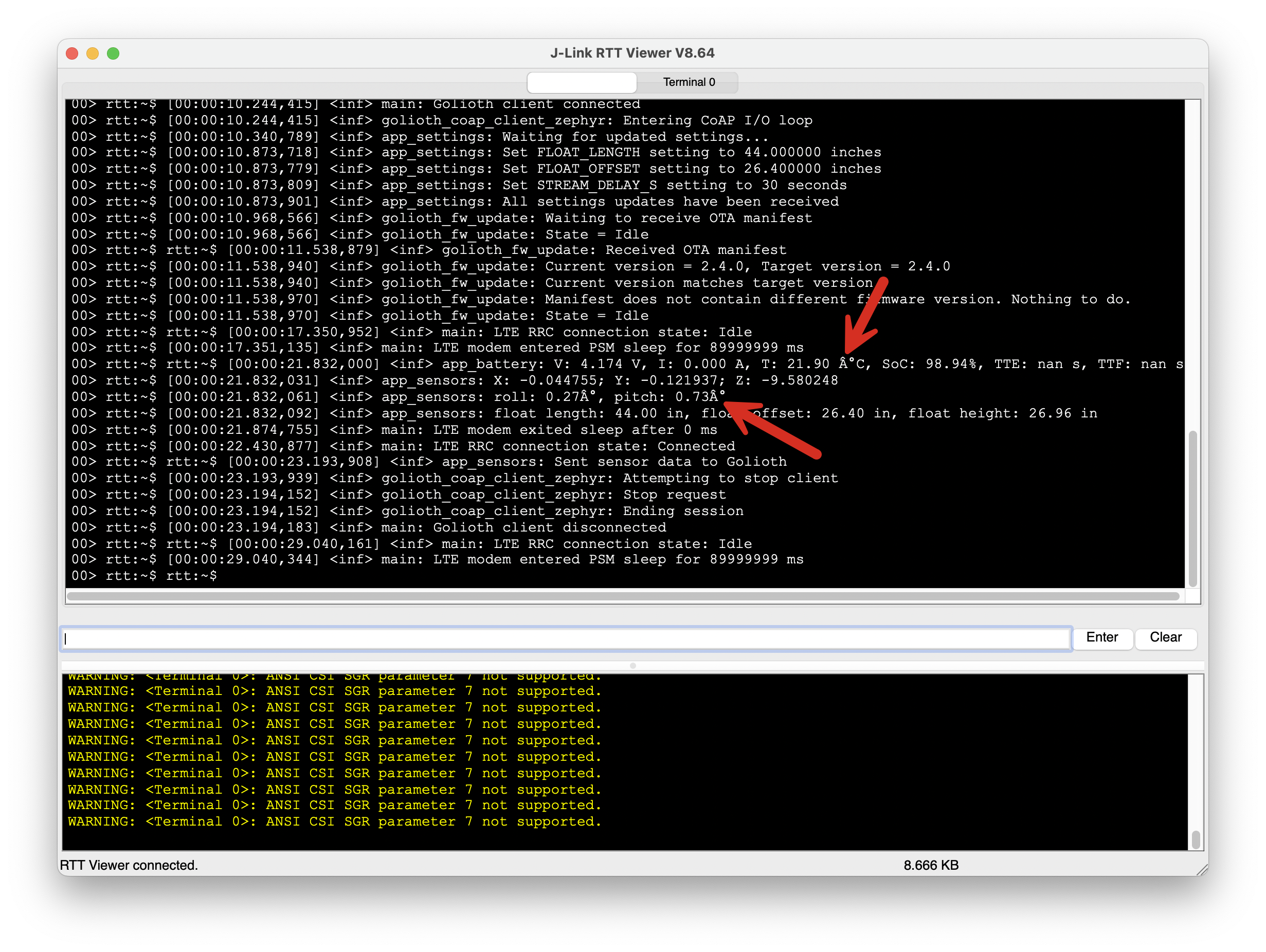

Segger’s Real Time Transfer (RTT) feels like magic 🪄, but their RTT viewer application feels like you’re stuck back in the 1980’s 📟.

For example: fonts are not configurable, there’s a clunky line-based input, and it only works with Latin1 (ISO/IEC 8859-1) encoded strings. If your device is sending UTF-8 characters to the RTT console, you get garbled output for multi-byte characters.

But… we don’t have to live this way! Today I learned you can use RTT without the Viewer app.

Here’s how it works. RTT is implemented as a client/server model which allows client devices to connect to the RTT server via telnet.

First, you start the Segger RTT server. The command below will automatically connect to a Nordic nRF9151 device via SWD on a J-Link with serial number 1196000003.

JLinkExe -NoGui 1 -If SWD -Speed 4000 -Device NRF9151_XXCA -AutoConnect 1 -USB 1196000003 -RTTTelnetPort 19021

Once the server is running, you can connect to it via telnet.

telnet localhost 19021

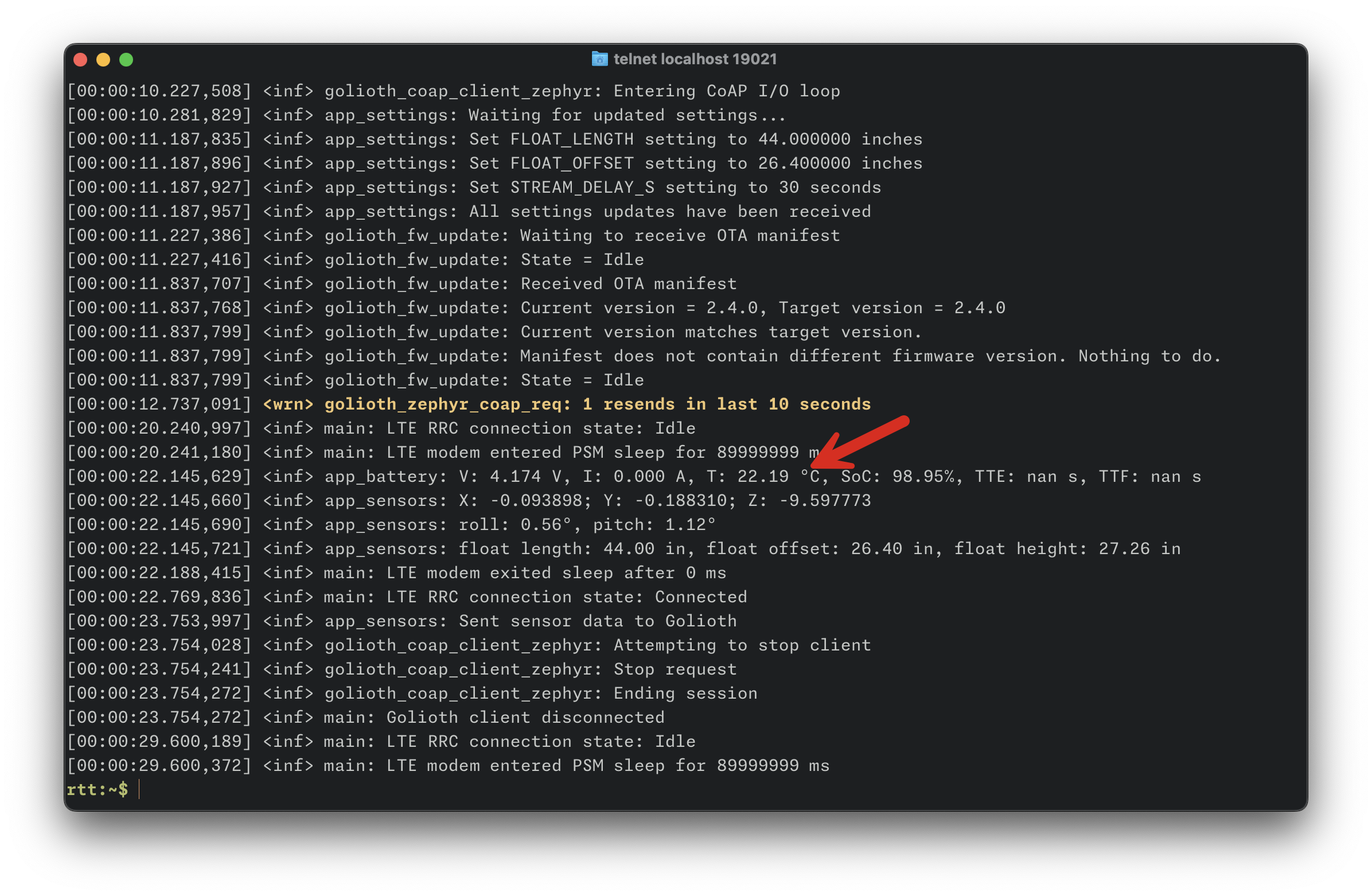

Since the RTT client is running in a nice terminal emulator (Ghostty), it automatically uses my terminal font (monaspace) and color theme. The Zephyr shell can be used in character mode without a clunky line mode input box. And UTF-8 characters are handled properly too!

Note

I had better success with the Zephyr shell when I switched telnet into character mode by typing the escape character ^] and running the command mode character.

rtt:~$ ^]
telnet> mode character

Alternatively, if you don’t have telnet, Segger includes a command line client application JLinkRTTClient that acts as a telnet client and connects directly to the RTT server.

JLinkRTTClient -LocalEcho Off

If you’re using Zephyr, things should be even simpler. The west rtt command should configure RTT automatically. For more info, check out the Zephyr Shell docs.

Note

When I tried this today with a Nordic Thingy:91 X and the v3.1.0 release of NCS, I got the following error when running west rtt:

ERROR: runners.jlink: [Errno 22] Invalid argument

If you want to follow along to see what’s causing this error, I submitted a support ticket to Nordic’s DevZone:

https://devzone.nordicsemi.com/f/nordic-q-a/124331/invalid-argument-error-when-running-west-rtt-with-nrf9151

If you know how to fix this or what I’m doing wrong, let me know in the comments below!

Happy debugging! 🐞
